ECHO OVERVIEW Slide1.JPG

ECHO is an Engine Controller High speed Oversight unit designed to provide controllers such as an engine ECU with the ability to incorporate diagnostics and extremely fast feedback control on critical systems.



  • Data sampled at rates of 50-200ks/s on ea. channel,

  • Data analyzed with a powerful 1.5 GHz processor.

  • CAN communication for fast handshake with ECU.

  • Easily customizable codes for dedicated analysis and modeling.

FUNCTIONAL BLOCK DIAGRAM

ECHO Functional Block Diagram.png

CAPABILITIES HIGHLIGHT

Spec Table.png

IN-CYLINDER PRESSURE SENSORS

  • If your engine does not have in-cylinder pressure sensors in place,  the table below contains a list of integrated pressure sensors for in-cylinder pressure analysis. These sensors have functional purposes (spark or glow) along with built-in pressure transducers and do not require any modifications to the engine.

Compatible Pressure Sensor.PNG

  • The figure on the left is an example of a spark plug integrated with a pressure transducer, and the figure on the right is a glow plug version.

Compatible Pressure Sensor 2.png

  • Note that ECHO will work any senors as long as they output voltages within ±10V. If you need assistance with instrumentation, our engineers would be happy to help.

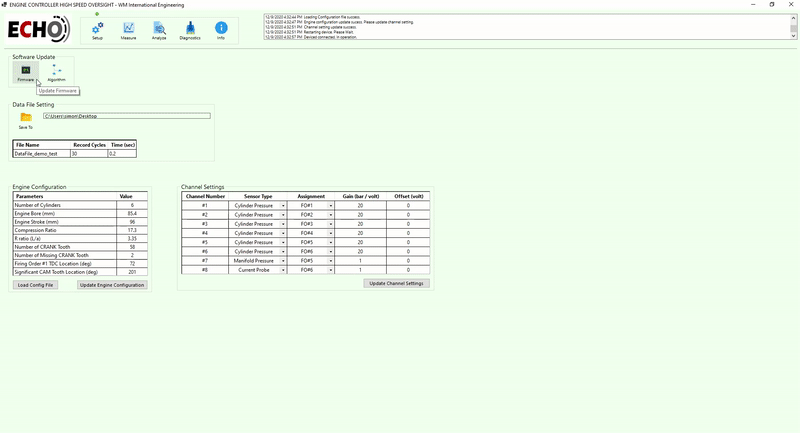

ECHO SOFTWARE HIGHLIGHT - Combustion Analysis


  • Synchronize the data with the TDC of each cylinder

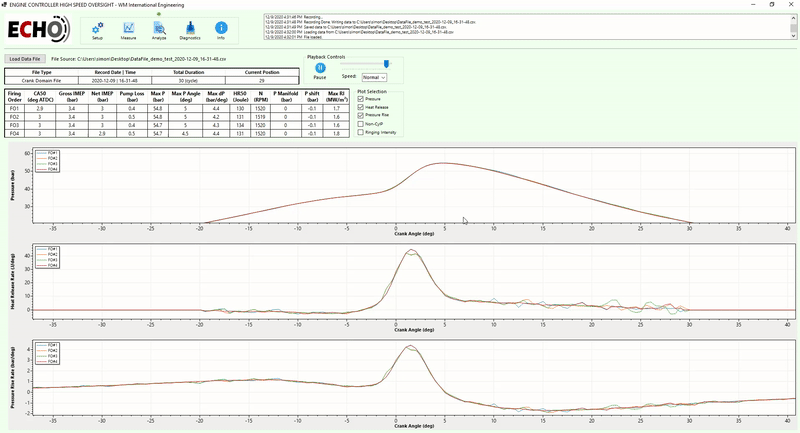

  • Perform live combustion analysis for both  ±180° ATDC and ± 360° ATDC

  • Feed critical parameters to engine ECU for cycle-to-cycle closed-loop control

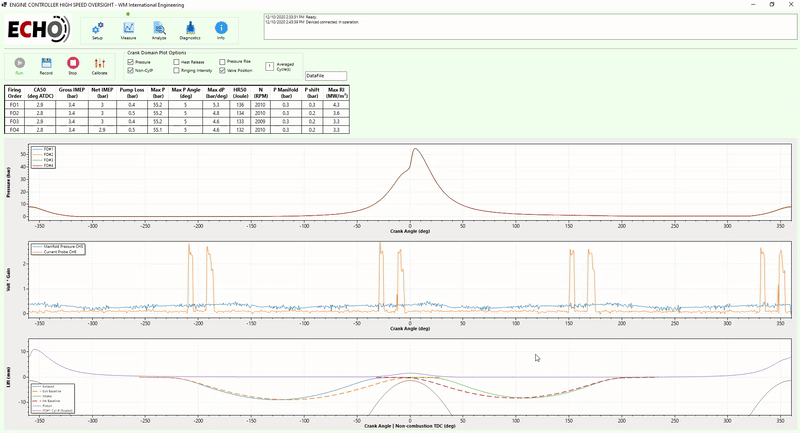

  • Visualize custom controls (e.g. injection, valve timing and duration)

  • Aggregate data to evaluate engine performances

  • Add intuitive visual aid for calibration and testing workflow


  • Use cycle-based recording in lieu of intense post-processing

  • Convenient data playback feature for swift on-site review and setup change

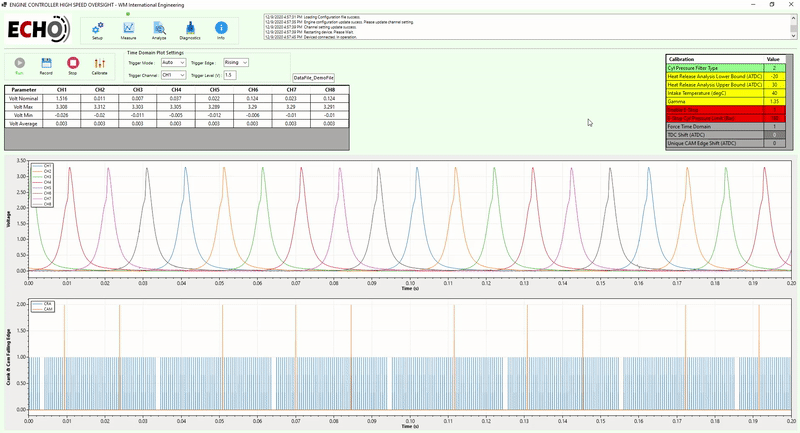

  • Time-domain mode available for general purpose and troubleshooting

  • Trigger feature provided to identify significant signal timings


  • ​User-accessible combustion algorithm for custom modeling and analysis

  • Software update available to accommodate future project needs
